Welcome To

iTRON BELL

ITRON® is a New Zealand based dedicated developer and manufacturer of advanced and innovative technology to our customers whilst delivering the most cost-effective solutions to meet the needs of individual clients; we value every single customer and never forget who we work for.

read more

ItronBELL

2K HD Video

Record your movies in Quad HD, a resolution of 2560 x 1440 pixels and share the moments you missed.

read more

ItronBELL

2.4GHz wIFI

Utilize 2.4GHz Wi-Fi networks to connect your smart phone to our iTronBELL Doorbell Camera for the quickest transmissions.

read more

ItronBELL

APP Control(Android & IOS)

iTronBELL Android and iOS applications make it simple to view, save, and share videos on your smartphone.

read more

itron features

Real Time Interaction

Use the app to remotely communicate with visitors at the door in real time.

Tamper Alarm System

An alarm will sound the moment iTronBELL’s power source is cut off.

Activity Zones

Specify where you want your doorbell to look for movement using the app.

User Friendly Interface

The main goal of our app is to provide a perfect user experience.

Support

Prominent customer support for problems with devices and the app.

New Zealand Made

Our iTronBELL mobile application is a proud product of New Zealand.

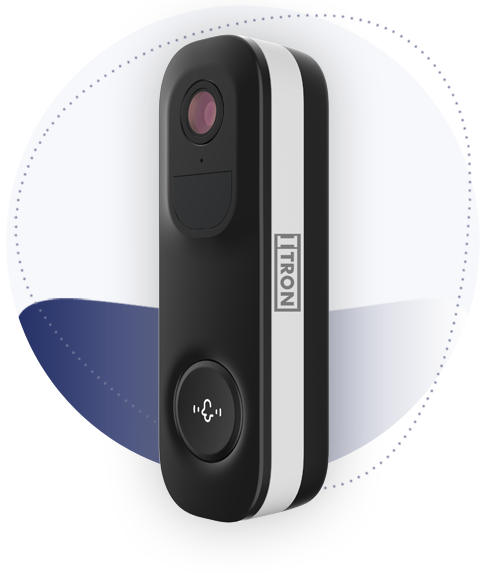

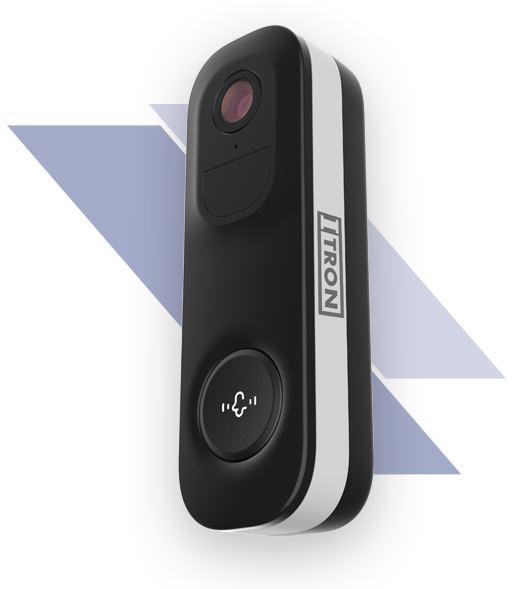

iTronBELL Smart AI Camera

Product Featured

  • Real-time Audio Video Intercom
  • Smart AV Recording
  • Video History / AI with Subscription
  • 2K HD video with 2048X1536
  • Support iTronCAM AI Smart APP
  • 4:3 aspect ratio with 160° field of view
  • IR Night Vision up to 7M
  • Wired & Wire Free Installation Support

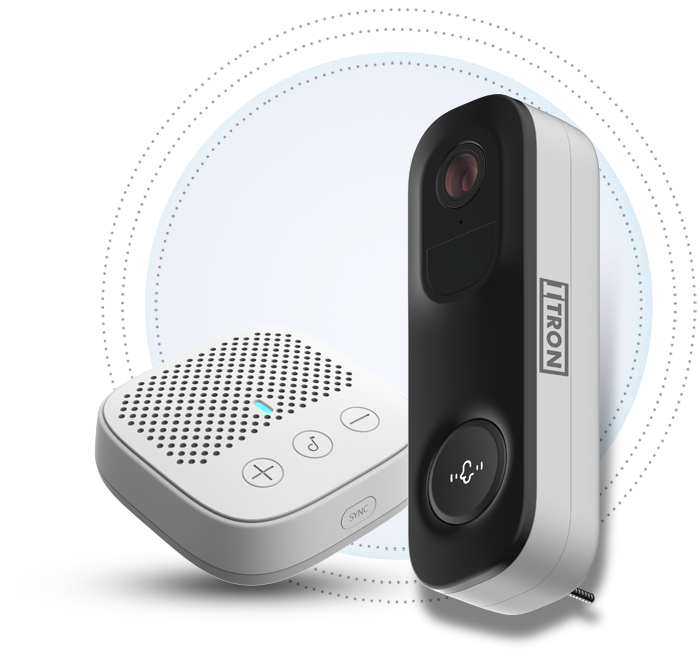

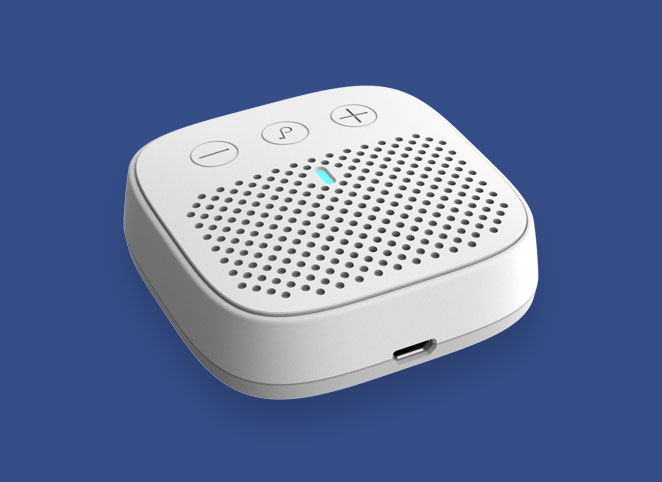

  • Includes One Chime & Can Connect to Multiple for Different Parts of the House
  • Support Micro SD up to 128GB Max & Storage with Subscription on AWS
  • QR Code for Fast Installation
  • Smart AI Human,Pet, Vehicle Detection & Smart Phone Push Notification with Subscription
  • IP65 Weatherproof IP65 Rated Protection from Rain, Dust, Snow, Sun

Technical Details Specification

Model: iTronCAM Specifications

Camera

  • Sensor
  • Lens
  • Optical Field of View
  • Minimum Illumination
  • 1/2.8" CMOS
  • 2.8 mm
  • 156° diagonal, 114° horizontal, 82° vertical
  • 0.01 lux

Audio

  • Input
  • Output
  • Two-way Audio
  • Audio Compressing
  • Built-in Microphone
  • Built-in Speaker
  • Full Duplex
  • AAC

Video

  • Video Compressing
  • Lighting Frequency
  • Frame Rate
  • Maximum Resolution
  • Light Source For Night Vision
  • H.264, H.265
  • 50 Hz, 60 Hz
  • 15 FPS
  • 2048 × 1536
  • Infrared LED

Network

  • Wireless Standard
  • Protocols Supported
  • IP Address Type
  • Wi-Fi: 2.4 GHz (IEEE 802.11 b/g/n) FSK: 915 MHz, 868 MHz, 433 MHz
  • TCP/IP, UDP/IP, DHCP, RTMP, MUTP, FSK
  • Dynamic IP

Recording

  • Recording Method
  • Video Storage
  • Alarm Triggered Recording & Manual Recording
  • Cloud Storage, Backup Micro SD card (128GB Max)

Function

  • AI Function
  • Wake-up Method
  • Alarm Notification
  • Indicator
  • Compatibility of Mechanical Chime and Smart speaker
  • Human, Vehicle, Pet Package Detection, 3 Activitiy Zones
  • PIR, Remote & Button Wake Up
  • Alarm Push Notification to Smart Phone, Indicator Light Flashing and Alarm Sound Warning
  • RGBY four-color LED
  • Mechanical Chime, (Alexa and Google Home Coming Soon)

Battery

  • Capacity
  • Removability
  • Working Time
  • Standby Time
  • Charging Voltage
  • Charging Time
  • Protection
  • 5200 mAh Activitiy Zones
  • Fixed
  • 5 months (20 x 10 Seconds Vidoe Clips Per Day of Recording )
  • 1 Year
  • "DC: 5 V ±5%AC: 8 V ~ 24 V 20 VA"
  • Up to 10 hours (DC)
  • Over Charge, Discharge & Current + Short Circuit Protection + High and Low Temperature

Power Consumption

  • Standby
  • Daytime Working
  • Nighttime Working
  • 3 mW
  • 1 W
  • 2.5 W

Interface

  • Power
  • Storage
  • Micro USB
  • Micro SD card

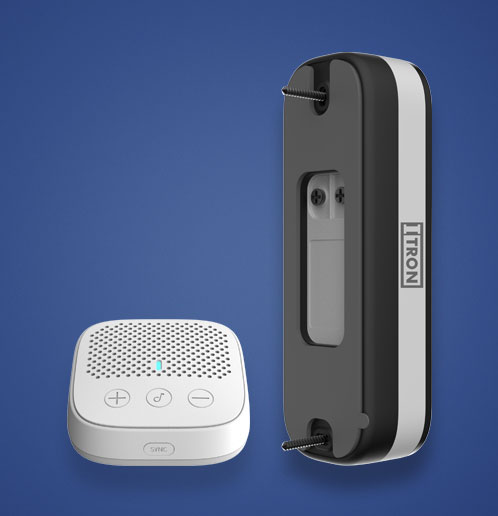

Installation

  • Installation Method
  • Bracket Type
  • Bracket Installation
  • Standard for Flat Brackets, Optional for Left or Right Tilt Bracket + Up and Down Bracket

Tamper-Proof

  • Structural tamper proof
  • Electronic tamper proof
  • Pin to Remove Cover
  • Temper Alarm Push Notification to Smart Phone (Optional)

Environment

  • Dustproof and Waterproof
  • Operating Temperature
  • Storage Temperature
  • IP65
  • -10 ℃ ~ 45 ℃
  • -20 ℃ ~ 60 ℃

Product Dimension

  • Dimension
  • Material
  • Color
  • 144 mm × 46 mm × 31 mm (without bracket)
  • PC
  • White

Certification

  • Certification
  • CE, FCC, RoHS, WEEE, MSDS, UN38.3, UL62368
